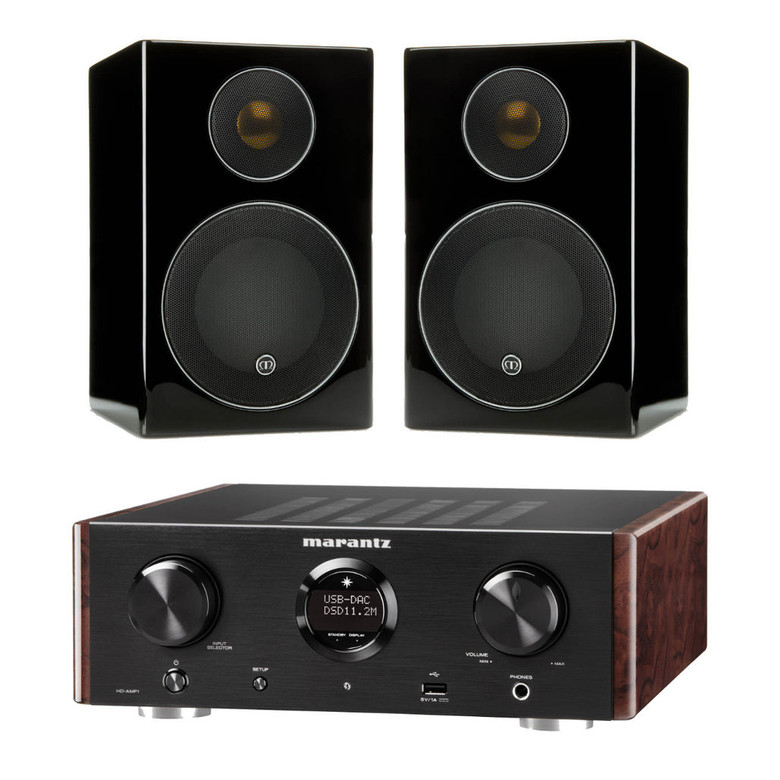

Marantz HD-AMP1
Housed in an elegant compact chassis that occupies just over 1 square foot of desktop or shelf space, the HD-AMP1 digital integrated amplifier features high resolution D/A conversion and compatibility with a wide range of uncompressed high resolution audio formats, including WAV, ALAC, FLAC and AIFF, and is also capable of decoding DSD tracks with compatibility of all 3 DSD sampling frequencies - 2.6/5.2/11.2-MHz (DSD is the audio format of SACD).
The powerful digital amplifier section features cool-running wide bandwidth and wide dynamic range Class D audiophile amplifier technology, delivering 35 watts per channel into 8 ohms and 70 watts per channel into 4 ohms, providing compatibility with the widest range of speaker types and impedances.
Featuring 2 USB ports, 1 on the front and 1 on the back, the HD-AMP1 lets you connect your favorite iDevice or USB drive to the front panel USB port, and your PC or Mac to the rear panel USB-B port to stream your high resolution audio tracks, and it features advanced noise isolation to guard against digital noise from degrading the high resolution sound.
Equipped with Marantz Musical Digital Filtering, our proprietary DSP filter technology, the HD-AMP1 lets you choose from 2 digital filter algorithms so you can precisely tailor the sound to your liking. The reference-class ESS SABRE DAC features 32-bit/384-kHz decoding for the highest resolution and widest dynamic range with today's advanced audiophile hi-res tracks.
The analog sections feature our exclusive HDAM-SA2 modules, including the analog front end block, the D/A converter block and in the dedicated headphone amplifier block.
There are 2 optical and 1 coaxial digital inputs, along with 2 analog inputs, so you can connect the widest range of source components.
The elegant chassis features a solid brushed aluminum front panel along with luxurious woodtone side panels.
Monitor Audio Radius 90
The original hi-fi mini monitor, and respected by all. Radius 90 continues to evolve, delivering a greater size-defying performance than ever before. New Radius 90 incorporates a 4” (100mm) C-CAM® bass driver and 1” (25mm) C-CAM tweeter for a tuneful, controlled and powerful sound in pairs or combined as front and rear speakers in an AV system along with the 200 or 225, and the 380/ 390 subs. Use the optional MASM speaker mount or any standard wall bracket for wall mounting via the 90’s single point fixing. Optional floor stands expand the installation possibilities still further.
New 4” C-CAM® bass driver - Radius features all new bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the new radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
New C-CAM gold dome tweeter - optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
HiVe®II port design - Straight from Platinum’s design blueprint, the HiVe reflex port makes its Radius debut. It’s shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
